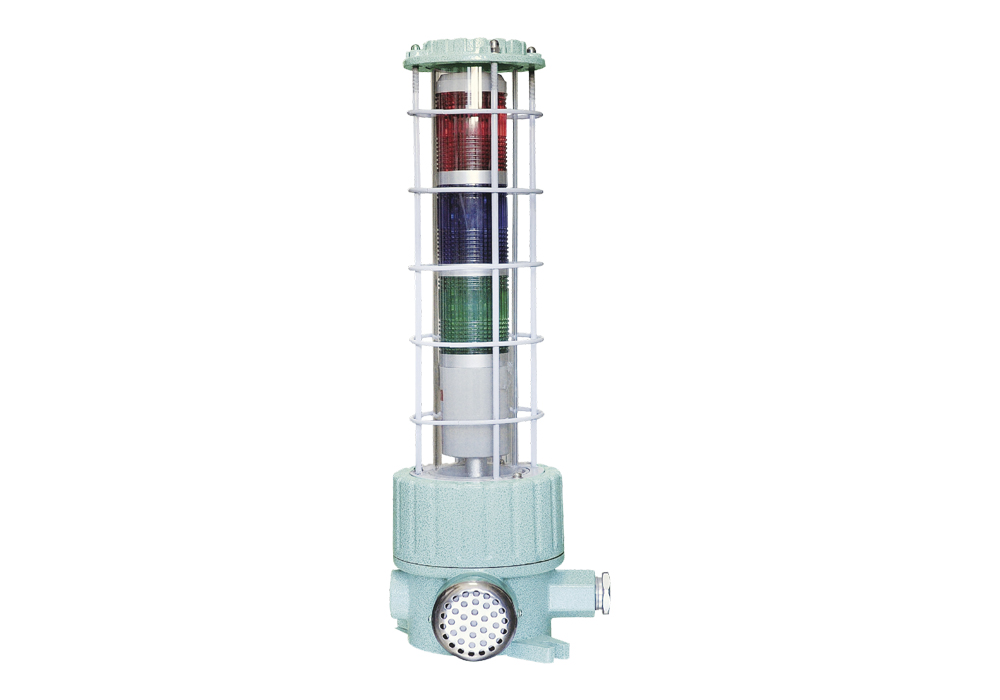

SEBJ-IV Explosion-Proof Warning Light (Audible and Visual Alarm)

Certified for Zone 1/2 gas and Zone 21/22 dust environments, the SEBJ-IV combines high-intensity alerts for oil refineries, chemical plants, and military sites. Features die-cast aluminum housing with IP66/WF2-rated corrosion resistance, tempered glass lens, and stainless steel fasteners. Equipped with 10W LED modules (red/yellow/green), it delivers customizable flashing (150/min) and ≥110dB alarms. Compliant with Ex db IIC T6 Gb/Ex tb IIIC T80°C Db (GB/IEC/EN), it supports multi-voltage inputs (AC12-220V/DC12-36V) and base-mounted installation. Includes reinforced mesh guard for impact resistance and G3/4 conduit wiring options. Ideal for T1-T6 hazardous zones requiring emergency signaling.



Advanced Warning Technology of SEBJ-V Explosion-Proof Warning Light (Audible and Visual Alarm)

✔ Dual-Alert System: 110dB siren + 150/min high-intensity LED flashes (Red/Yellow/Green)
✔ Rugged Construction: Die-cast aluminum housing with stainless steel fasteners
✔ Impact-Resistant Design: 5mm tempered glass + protective mesh guard
✔ Energy Efficient: 10W LED with 50,000+ hour lifespan


Technical Specifications of SEBJ-IV Explosion-Proof Warning Light (Audible and Visual Alarm)

• Base Mount (Z-type) installation
• Customizable flash patterns
• Conduit/Cable entry (G3/4, Φ10-14mm)
• Wide voltage range (12-220V AC/DC)
