Name: SED8132 Explosion-Proof High-Efficiency LED Lighting
Brand: Shanghai Shengyi Explosion-Proof Electrical Appliances Co., Ltd.

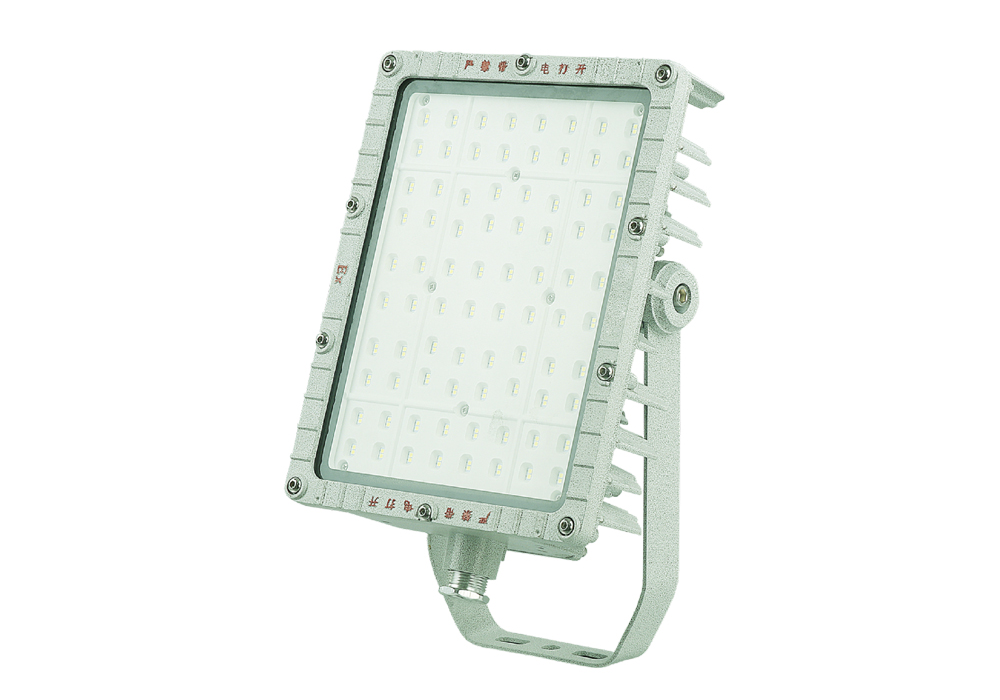

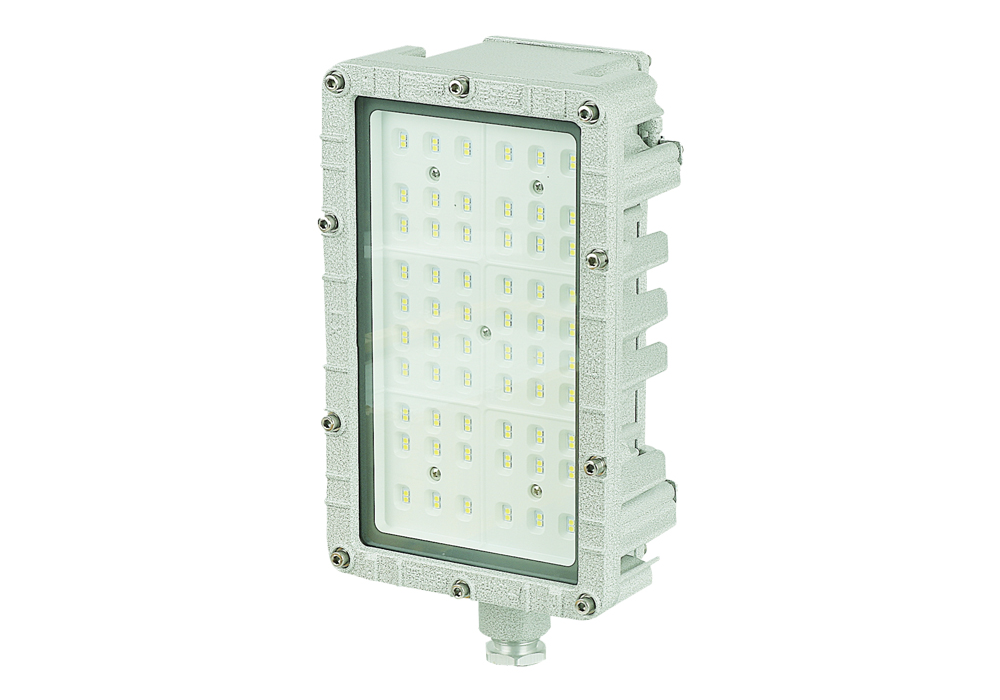

SED8132 Explosion-Proof High-Efficiency LED Lighting

Engineered for hazardous zones (Zone 2/21/22, IIA-IIC, T1-T6), the SED8132 LED light delivers explosion-proof illumination for oil, chemical, military, and industrial facilities. Its die-cast aluminum housing with stainless steel fasteners and IP65/66-rated sealing ensures corrosion resistance (WF1/WF2) in harsh conditions. Featuring a unified light source/power cavity design, it simplifies installation across multiple mounting options (ceiling, wall, bracket, or conduit). The series offers 60W-400W power variants with ≥140 lm/W efficacy, 220V/DC compatibility, and 50,000-hour lifespan. Certified to GB/T, IEC, and EN standards (Ex nR CT5 Gc / Ex tb IIIC T95°C Db), it integrates high-performance LEDs with optional anti-glare PC covers for visual comfort. Modular configurations support flexible upgrades, while reinforced thermal management guarantees stability. Ideal for explosive gas/dust environments requiring maintenance-free, energy-saving solutions.

Specifications of SED8132 Explosion-Proof High-Efficiency LED Lighting

Model No.	Housing Type	Power (W)	Rated Voltage (V)	Explosion-proof Marking	Average Lamp Life (h)
SED8132-60	I	60	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-70	I	70	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-80	I	80	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-90	I	90	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-100	I	100	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-110	I	110	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-120	I	120	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-130	II	130	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-140	II	140	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-150	II	150	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-200	II	200	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-200	II	200	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-300	III	300	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
SED8132-400	III	400	220	Ex nR II CT5 Gc Ex tb IIIC T95°C Db	50,000
