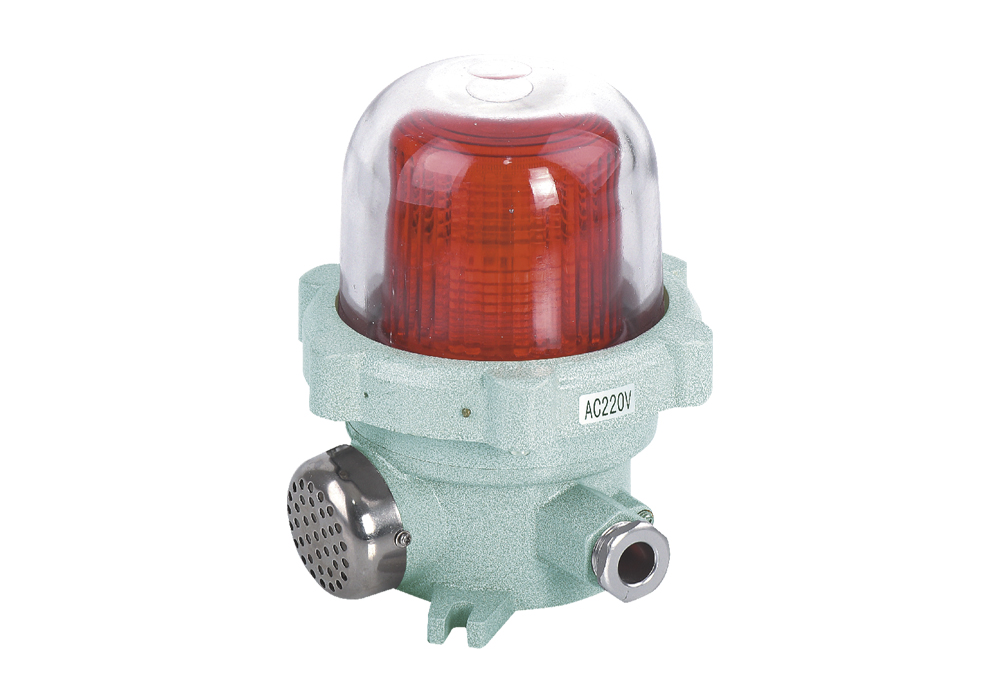

SEBJ-II Series Explosion-Proof Warning Beacon with Audible Alarm

Designed for Zone 1/2 gas and Zone 21/22 dust environments, the SEBJ-II series combines visual/audible alerts for hazardous areas like oil refineries, chemical plants, and military facilities. Features die-cast aluminum housing with electrostatic coating, tempered glass lens, and stainless steel fasteners for IP66/WF2-rated durability. High-brightness LEDs (red/yellow/blue/green) offer steady or flashing modes (150/min), paired with ≥100dB alarms. Certified to Ex db IIC T6 Gb/Ex tb IIIC T80°C Db (GB/IEC/EN), it supports multi-voltage inputs (AC12-220V/DC12-36V) and flexible mounting (pendant, base). Ideal for emergency signaling in T1-T6 conditions with G3/4 conduit wiring.

Key Features of SEBJ-II Series Explosion-Proof Warning Beacon with Audible Alarm

✔ Multi-mode alert system:

150 flashes/min LED beacon (Red/Yellow/Blue/Green)

≥100dB audible alarm (customizable patterns)

✔ Industrial-grade construction:

Die-cast aluminum housing with electrostatic coating

4J impact-resistant tempered glass lens

Stainless steel fasteners for corrosion resistance

✔ Flexible deployment:

Dual mounting: Pipe (G3/4) or base installation

Wide voltage range (AC12-220V/DC12-36V)

✔ Compliance: Meets GB3836, IEC60079 & EN60079 standards
